PRO-950M
950M

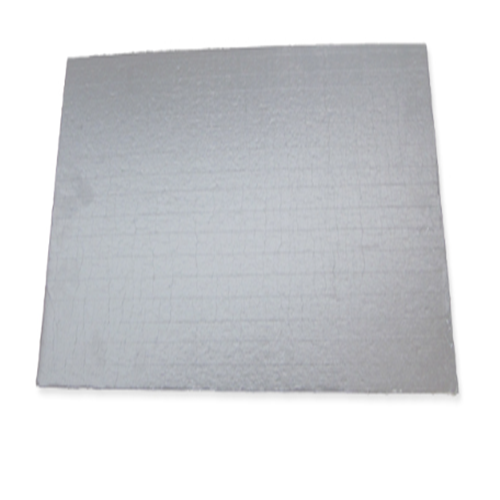

Microporous Insulation Plate(PRO-950M)
Microporous Insulation board (PRO-950M) is high performance thermal insulating material, with a porous structure based on chains of amorphous fumed silica, agglomerates of particles from 7 to 12nm in size. It also contains special pacifiers for minimizing infrared radiation, and inorganic fibers.
| Product Name | PRO-950M Microporous heat insulation plate | Inspection standard | |
| Product Code | PRO-950M | ||
| Melting point | ≥1200℃ | ||
| Usage temperature | 950℃ | ||
| Density (±10%) | 320kg/m3 | GB/T17911-2006 | |
| Specific Heat capacity（400℃） | 0.8kJ/kg.k | YB/T4130-2005 | |
| Compressive strength ( compression10%） | 0.3MPa | GB/T 13480-1992 | |
| Linear Shrinkage（800℃） | 2.0% | GB/T17U911-2006 | |
| Thermal conductivity（w/m.k） | 70℃ | 0.019 | YB/T4130-2005 |
| 200℃ | 0.021 | ||
| 400℃ | 0.024 | ||
| 600℃ | 0.031 | ||
| 800℃ | 0.040 | ||
Value to Our Customers:
w High temperature resistance - long-term use temperature of 400 ~ 1000 degrees
w Durability - can be used as a permanent layer of insulation, service life of more than 5 ~ 10 years
w Extremely low thermal conductivity. (3~4 times better insulating performace comparing with conventional insulations.)
w Non combustible, Low specific heat, Free of respirable fibers。
Microporous Insulation Plate(PRO-950M)
Microporous Insulation board (PRO-950M) is high performance thermal insulating material, with a porous structure based on chains of amorphous fumed silica, agglomerates of particles from 7 to 12nm in size. It also contains special pacifiers for minimizing infrared radiation, and inorganic fibers.
| Product Name | PRO-950M Microporous heat insulation plate | Inspection standard | |
| Product Code | PRO-950M | ||
| Melting point | ≥1200℃ | ||
| Usage temperature | 950℃ | ||
| Density (±10%) | 320kg/m3 | GB/T17911-2006 | |
| Specific Heat capacity（400℃） | 0.8kJ/kg.k | YB/T4130-2005 | |
| Compressive strength ( compression10%） | 0.3MPa | GB/T 13480-1992 | |
| Linear Shrinkage（800℃） | 2.0% | GB/T17U911-2006 | |
| Thermal conductivity（w/m.k） | 70℃ | 0.019 | YB/T4130-2005 |
| 200℃ | 0.021 | ||
| 400℃ | 0.024 | ||
| 600℃ | 0.031 | ||
| 800℃ | 0.040 | ||
Value to Our Customers:
w High temperature resistance - long-term use temperature of 400 ~ 1000 degrees
w Durability - can be used as a permanent layer of insulation, service life of more than 5 ~ 10 years
w Extremely low thermal conductivity. (3~4 times better insulating performace comparing with conventional insulations.)
w Non combustible, Low specific heat, Free of respirable fibers。
