PRO-340
PRONEWMAT
340

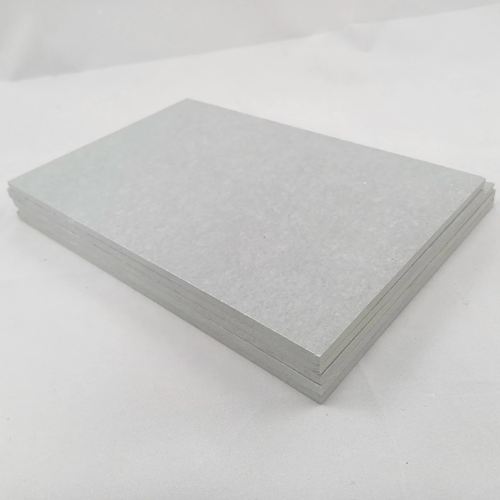

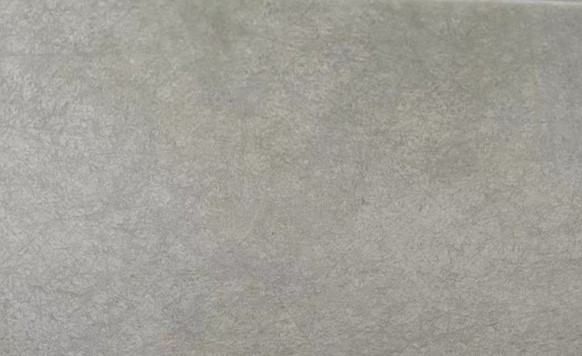

PRO-340 is a material, specially developed for low cost thermal insulations in moulds and hot presses. It can withstand middle high forces at the typical mould temperatures suitable for maybe 50% of all applications. It´s standard colour is white. PRO-340 often also is used as a mould outside insulation.
Please check the Parameters of Insulation Materials for PRO-340:
| Material name | Unit | PRO -340 |
| Best at | High temperature | |
| Long term usage temperature | ℃ | 300 |
| Maximum service temperature | ℃ | 340 |
| Thermal conductivity | W/mK | 0.22 |
| Thermal expansion | 10-6/K | 15 |
| Compressive strength at 23℃ | N/mm² | 600 |
| Compressive strength at 200℃ | N/mm² | 500 |
| Water absorption | % | 0.1 |
| Density | g/cm³ | 1.95 |
| Colour | White | |
| Width*length | mm | 1220*2440 |
| Thickness | mm | 3-80 |
PRO-340 is a material, specially developed for low cost thermal insulations in moulds and hot presses. It can withstand middle high forces at the typical mould temperatures suitable for maybe 50% of all applications. It´s standard colour is white. PRO-340 often also is used as a mould outside insulation.
Please check the Parameters of Insulation Materials for PRO-340:
| Material name | Unit | PRO -340 |
| Best at | High temperature | |
| Long term usage temperature | ℃ | 300 |
| Maximum service temperature | ℃ | 340 |
| Thermal conductivity | W/mK | 0.22 |
| Thermal expansion | 10-6/K | 15 |
| Compressive strength at 23℃ | N/mm² | 600 |
| Compressive strength at 200℃ | N/mm² | 500 |
| Water absorption | % | 0.1 |
| Density | g/cm³ | 1.95 |
| Colour | White | |
| Width*length | mm | 1220*2440 |
| Thickness | mm | 3-80 |
