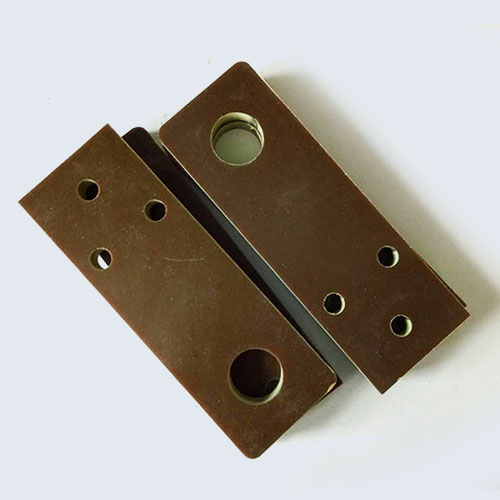

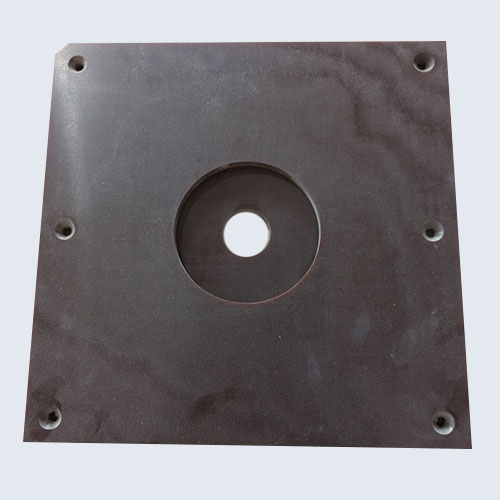

Thermal Insulation Mold Plate PRO-260

Material:
Color:
Size:
Thickness:
Availability:
Quantity:
  • PRO-260

  • PRONEWMAT

PRO-260 is a material, specially developed high end thermal insulations in molds and hot presses. Widely used in the wood panel industry, this material also is more and more applied in plastic processing industry, where the requirements are very high. Especially at elevated temperatures the material keeps its mechanical strength. Even we only recommend maximum short time temperatures of 260°C, some of our customers use the material at continuous temperatures of 280 and even 290°C. Of cause at such high temperatures the life time has its limit.

Please check the parameters for PRO-260:

Material   nameUnitPRO-260
Best at
Hight force, high   temperature
Long term   usage temperature  ℃250
Maximum   service temperature260
Thermal   conductivityW/mK0.22
Thermal   expansion10-6/K15
Compressive   strength at 23℃N/mm²560
Compressive   strength at 200℃N/mm²350
Water   absorption %0.1
Densityg/cm³1.9
Colour
Dark brown
Width*lengthmm1010*2050
Thicknessmm3-80
