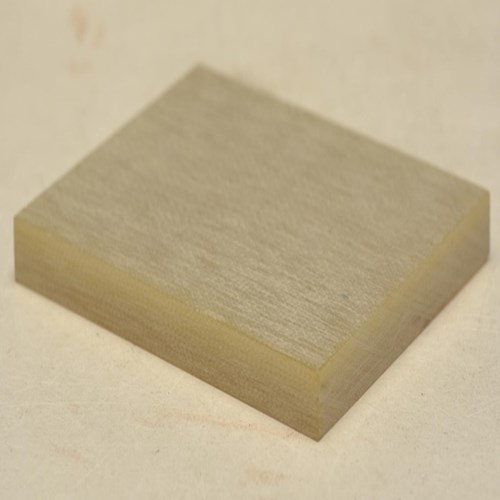

PRO-210A
PRONEWMAT
PRO-210A is a material, we developed as the universal material for thermal insulations in molds and hot presses. It can withstand high forces at the typical mold temperatures. It is the material of your choice, if you are not sure about the real conditions, forces and temperatures at the mold surface. You often can find that material as the standard insulation, delivered with the injection molding machines.
Please check the Parameters for PRO-210A :
| Material name | Unit | PRO-210A |
| Best at | Low cost, high forces | |
| Long term usage temperature | ℃ | 200 |
| Maximum service temperature | ℃ | 210 |
| Thermal conductivity | W/mK | 0.19 |
| Thermal expansion | 10-6/K | 13 |
| Compressive strength at 23℃ | N/mm² | 600 |
| Compressive strength at 200℃ | N/mm² | 350 |
| Water absorption | % | 0.1 |
| Density | g/cm³ | 1.9 |
| Colour | Yellow/Green | |
| Width*length | mm | 1220*2440 |
| Thickness | mm | 3-80 |
PRO-210A is a material, we developed as the universal material for thermal insulations in molds and hot presses. It can withstand high forces at the typical mold temperatures. It is the material of your choice, if you are not sure about the real conditions, forces and temperatures at the mold surface. You often can find that material as the standard insulation, delivered with the injection molding machines.
Please check the Parameters for PRO-210A :
| Material name | Unit | PRO-210A |
| Best at | Low cost, high forces | |
| Long term usage temperature | ℃ | 200 |
| Maximum service temperature | ℃ | 210 |
| Thermal conductivity | W/mK | 0.19 |
| Thermal expansion | 10-6/K | 13 |
| Compressive strength at 23℃ | N/mm² | 600 |
| Compressive strength at 200℃ | N/mm² | 350 |
| Water absorption | % | 0.1 |
| Density | g/cm³ | 1.9 |
| Colour | Yellow/Green | |
| Width*length | mm | 1220*2440 |
| Thickness | mm | 3-80 |
